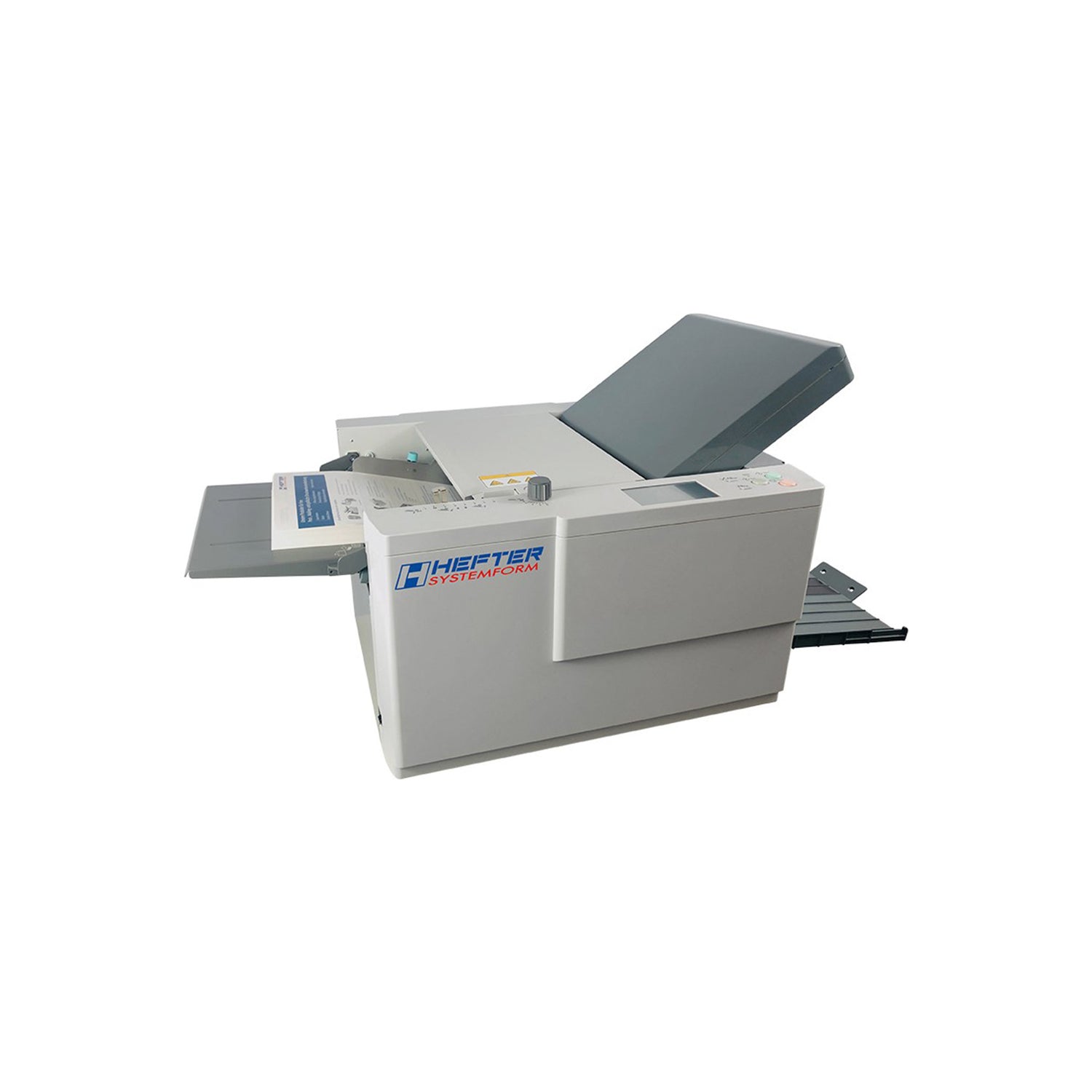

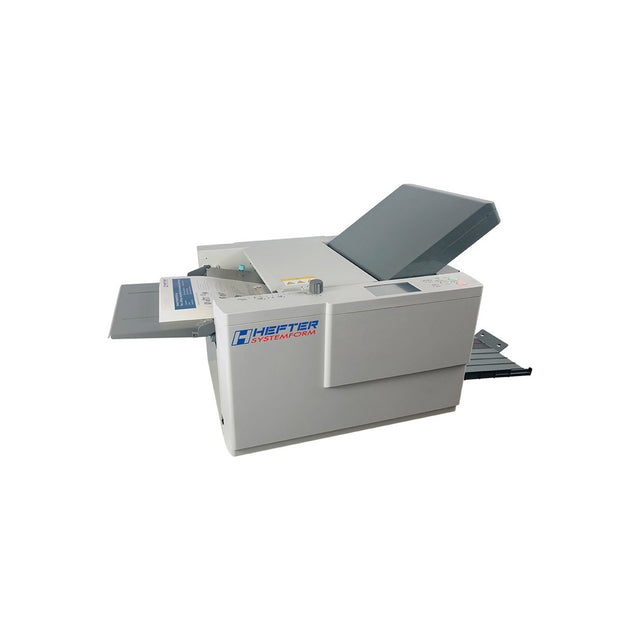

Folding machine TF MAGNUM Pro
Folding machine TF MAGNUM Pro is in stock and will be shipped as soon as it is available again
Miete und Leasing
Miete und Leasing
Downloads
Downloads
The perfect way to fold large quantities of paper up to DIN A3+ fully automatically
Highlights of the TF MAXI folding machine
- Speed up to 15,600 folds/h (variably adjustable)
- Automatic paper format recognition (DIN formats)
- Paper formats: min. 74 x 105 mm; max. 311 x 457 mm
- Paper weight: 50 - 160 g/sqm
- Automatic buckle plate adjustment
- Electronic fine adjustment of the rebate length (0.1 mm increments)
- Button for test fold
- Fold types: single, wrap, Z, double, altar, drawing and cross folds
- Fine adjustment of the fold parallelism
- Adjustable blade contact pressure and blade separation
- Paper feed via automatic lowering table
- Operation via color touchscreen
- Electronic counter and preset counter with batch function
- 30 job memories for user-specific applications
- Automatic paper end switch-off, jam, missing sheet and double sheet control
- Scale shelf with automatic adjustment
The professional solution when versatility is required
The TF MAGNUM Pro automatically recognizes all DIN formats from B7 to A3 after the paper stack has been inserted. There are 7 different fold types to choose from. As soon as the desired fold type has been determined via the touchscreen, both buckle plates and the shingled delivery adjust automatically to the paper length. The paper feed works with 3 feed rollers. This ensures precise feeding of the paper sheets. The TF MAGNUM Pro also has adjustment options for the contact pressure of the rollers, sheet separation and fold parallelism. The support table for the paper stack is raised and lowered automatically. The entire control system is operated via a large control panel with display, which can be used intuitively and immediately. Individual jobs can be stored in 30 memory locations. At 72 dB, the TF MAGNUM Pro is the quietest folding machine in its class.
Specifications
Specifications
-
Durchsatz/Std. max.
-
Papierformate
-
Falzarten
-
Einstellungs-Optionen
-
Anlage-Kapazität (Anzahl Blatt)
Ähnliche Produkte
Show all-
The robust TF MEGA-S folding machine folds documents up to DIN A4 quickly and quietly. With up to 6,900 folds/h, four fold types, fine adjustment and practical convenience features, it is ideal for everyday office use.
Item number: 000045005700
plus VAT1.149,00 €Base price /Not available -

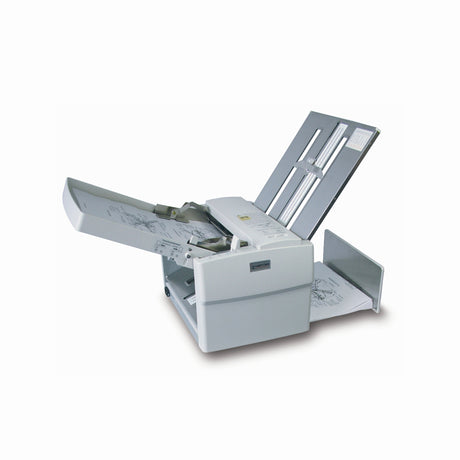

The compact TF MAXI folding machine folds paper up to DIN A3 quickly and precisely. Seven fold types, easy operation and up to 6,000 folds per hour make it ideal for versatile folding tasks in the office.
