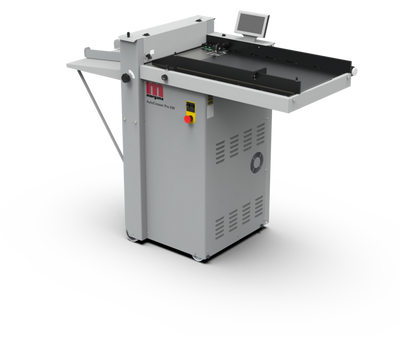

AutoCreaser Pro XW creasing and perforating machine
The AutoCreaser Pro XW is the right model for automatic processing of wider formats up to 700 x 500 mm (L x W).
AutoCreaser Pro XW creasing and perforating machine is in stock and will be shipped as soon as it is available again
Miete und Leasing
Miete und Leasing
Downloads
Downloads
Fully automatic creasing and perforating of large sheet formats at high speed
Highlights of the AutoCreaser Pro XW creasing and perforating machine
- 7-inch SmartScreen touchscreen
- 700 mm x 500 mm maximum sheet size
- Intuitive and easy to use
- Fully automatic
- Up to 16 creases per sheet
- Takes material up to 0.4 mm (approx. 400 g/m²)
- Simple, quick tool change
- up to 8,500 A4 sheets per hour
- Unlimited memory
- Adjustable creasing depth and creasing side
- Full cross-perforation capability up to 500 mm (optional)
Gentle processing during fully automatic creasing and perforating
AutoCreaser Pro XW is a fully automatic creasing and perforating machine for the gentle processing of digital prints with sensitive surfaces, sheets with higher grammages, coated or laminated papers and thus prevents the problem of cracking that can occur when folding digitally printed material.
Paper feed
Paper is fed via a suction air feeder with air-assisted sheet separation with a maximum stacking capacity of 5 cm mm in height. The suction air feeder enables continuous material feed during production.
Passage width of up to 500 mm
The maximum throughput width is up to 500 mm. Longitudinal perforation via perforation wheels is also standard on the AutoCreaser Pro XW. The machine can optionally be equipped with cross and partial perforation.
